Ex Luminaire

Asteria-led

Key feature·Size Type

Overview

Learn more about “Asteria-led”

ASTERIA lighting fixture, Golnoor series of flameproof light fittings, is the ideal solution for lighting in hazardous areas. This product benefits from a robust flameproof enclosure with the light-transmitting part made of borosilicate glass and the metallic part made of copper-free aluminum covered with coatings making it suitable for use in corrosive, high-temperature, and humid environments. The fixture is also suitable for outdoor applications due to its high degree of protection, IP67. Maintenance is simplified due to the gathering of all electrical components on a single frame moving on guides outwards, thus eliminating the need for removal of the whole fixture for servicing. Through-wiring is included as the default feature, which, along with the movable frame, helps to keep connected lightings turned on if one is out of service. Brackets are available for ceiling, pole, and pendant mountings. Using the available auxiliary bracket along with main brackets facilitates and speeds up servicing. In case fixtures are used in locations with a high risk of mechanical impacts, an external protection and wire guard is available upon request. Various electrical circuits meet the diverse needs of the lighting industry in hazardous areas. Fluorescent and LED light sources with various powers are supplied. Emergency models are provided to ensure lighting in case of power failures, and sign models are available for lighting exit routes and identifying emergency exits.

Product details

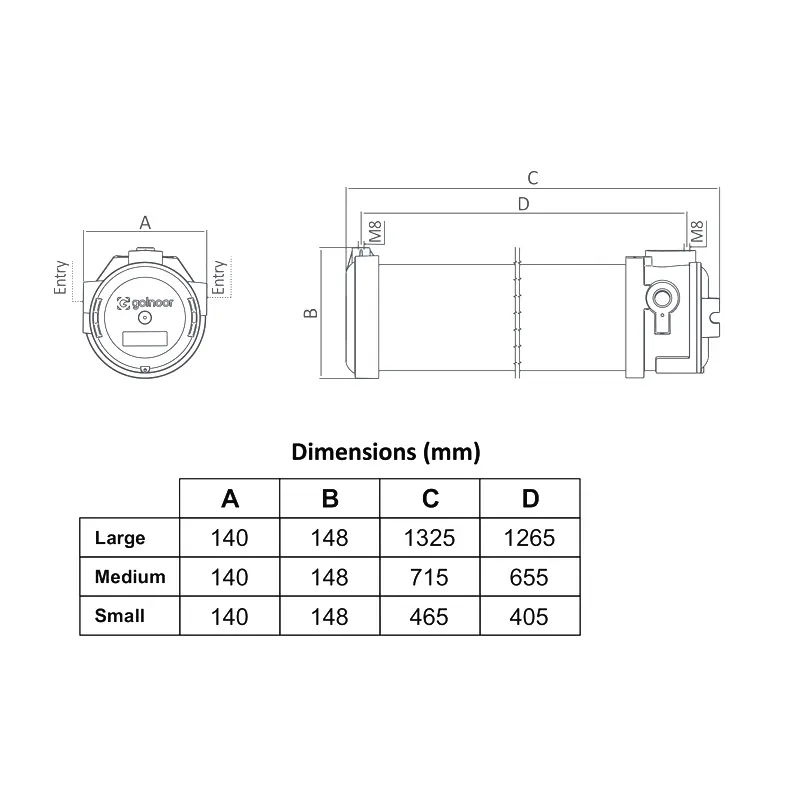

Models, gallery, dimensions, and other media for “Asteria-led”

Downloads

Downloadable files for “Asteria-led”

Technical specifications

Configuration table with filterable technical data.

Large

Size Type

Power(watt)	Luminous Flux(lumen)	Cable Entries	Order Code	Dimensions(millimetre)	View model
60W	10000lm	2Xm25	X10 NL 60 - L	1325 × 140 × 148mm	View model
60W	10000lm	2Xm20	X10 NL 60 - L	1325 × 140 × 148mm	View model
60W	10000lm	2Xm25	X10 EL 60 - L	1325 × 140 × 148mm	View model
60W	10000lm	2Xm20	X10 EL 60 - L	1325 × 140 × 148mm	View model
40W	7000lm	2Xm25	X10 NL 40 - L	1325 × 140 × 148mm	View model
40W	7000lm	2Xm20	X10 NL 40 - L	1325 × 140 × 148mm	View model

Medium

Size Type

Power(watt)	Luminous Flux(lumen)	Cable Entries	Order Code	Dimensions(millimetre)	View model
30W	5000lm	2Xm25	X10 NL 30 -M	715 × 140 × 148mm	View model
30W	5000lm	2Xm20	X10 NL 30 -M	715 × 140 × 148mm	View model
30W	5000lm	2Xm25	X10 EL 30 -M	715 × 140 × 148mm	View model
30W	5000lm	2Xm20	X10 EL 30 -M	715 × 140 × 148mm	View model
20W	3300lm	2Xm25	X10 NL 20 -M	715 × 140 × 148mm	View model
20W	3300lm	2Xm20	X10 NL 20 -M	715 × 140 × 148mm	View model

Small

Size Type

Power(watt)	Luminous Flux(lumen)	Cable Entries	Order Code	Dimensions(millimetre)	View model
15W	2330lm	2Xm25	X10 NL 15 -S	465 × 140 × 148mm	View model
15W	2330lm	2Xm20	X10 NL 15 -S	465 × 140 × 148mm	View model
15W	2330lm	2Xm25	X10 EL 15 -S	465 × 140 × 148mm	View model
15W	2330lm	2Xm20	X10 EL 15 -S	465 × 140 × 148mm	View model

Light distribution (LDT)

Polar curves and 3D photometric solid for “Asteria-led”

Product applications

Indoor
