Expired Ariel-1
Ariel-1
Models ( Power )
40
(W)
65
(W)
Full Screen
Gl Product
Gl Dimension
Gl Rotation
Luminousintensitydiagram
Review

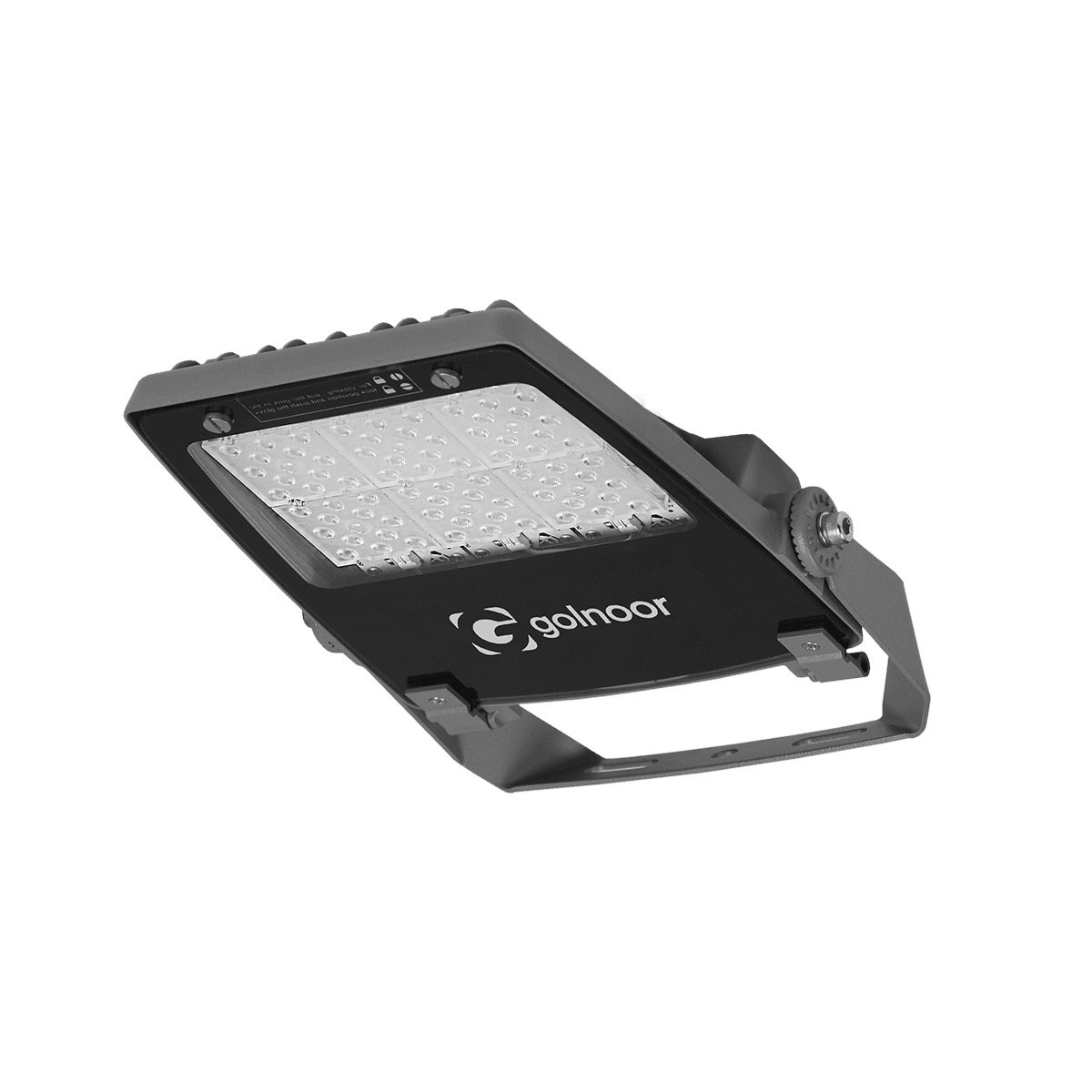

Ariel 1 is a powerful and versatile LED floodlight designed for outdoor use. With a power of 45 and 80 watts, it has IP66 and IK07 protection, making it water, dust, and impact resistant. This makes it suitable for use in harsh environments. Ariel 1 can be used to illuminate playgrounds, parks, commercial areas, and other outdoor spaces.
Data Download
Filter:
Models
( Power )
:Select Option
Color Temperature
:Select Option
Light Distribution Angle
(degrees):Select Option
Luminous Flux
(Lm):Select Option
40
W
Color Temperature | Light Distribution Angle(degrees) | Luminous Flux(Lm) | Nominal Input Voltage | Guarantee(year) | |
|---|---|---|---|---|---|
3000(K) | 25 | 5400 | 230 | 5 | View and Download Data |
4000(K) | 25 | 5700 | 230 | 5 | View and Download Data |
5000(K) | 25 | 5700 | 230 | 5 | View and Download Data |
6500(K) | 25 | 5700 | 230 | 5 | View and Download Data |
3000(K) | 60 | 5500 | 230 | 5 | View and Download Data |
4000(K) | 60 | 5800 | 230 | 5 | View and Download Data |
5000(K) | 60 | 5800 | 230 | 5 | View and Download Data |
6500(K) | 60 | 5800 | 230 | 5 | View and Download Data |
3000(K) | 90 | 5300 | 230 | 5 | View and Download Data |
4000(K) | 90 | 5550 | 230 | 5 | View and Download Data |
5000(K) | 90 | 5550 | 230 | 5 | View and Download Data |
6500(K) | 90 | 5550 | 230 | 5 | View and Download Data |
65
W
Color Temperature | Light Distribution Angle(degrees) | Luminous Flux(Lm) | Nominal Input Voltage | Guarantee(year) | |
|---|---|---|---|---|---|
3000(K) | 25 | 8800 | 230 | 5 | View and Download Data |
4000(K) | 25 | 9300 | 230 | 5 | View and Download Data |
5000(K) | 25 | 9300 | 230 | 5 | View and Download Data |
6500(K) | 25 | 9300 | 230 | 5 | View and Download Data |
3000(K) | 60 | 9000 | 230 | 5 | View and Download Data |
4000(K) | 60 | 9500 | 230 | 5 | View and Download Data |
5000(K) | 60 | 9500 | 230 | 5 | View and Download Data |
6500(K) | 60 | 9500 | 230 | 5 | View and Download Data |
3000(K) | 90 | 8700 | 230 | 5 | View and Download Data |
4000(K) | 90 | 9100 | 230 | 5 | View and Download Data |
5000(K) | 90 | 9100 | 230 | 5 | View and Download Data |
6500(K) | 90 | 9100 | 230 | 5 | View and Download Data |
