Azarin-1, Architectural Light

Learn more about “Azarin-1”

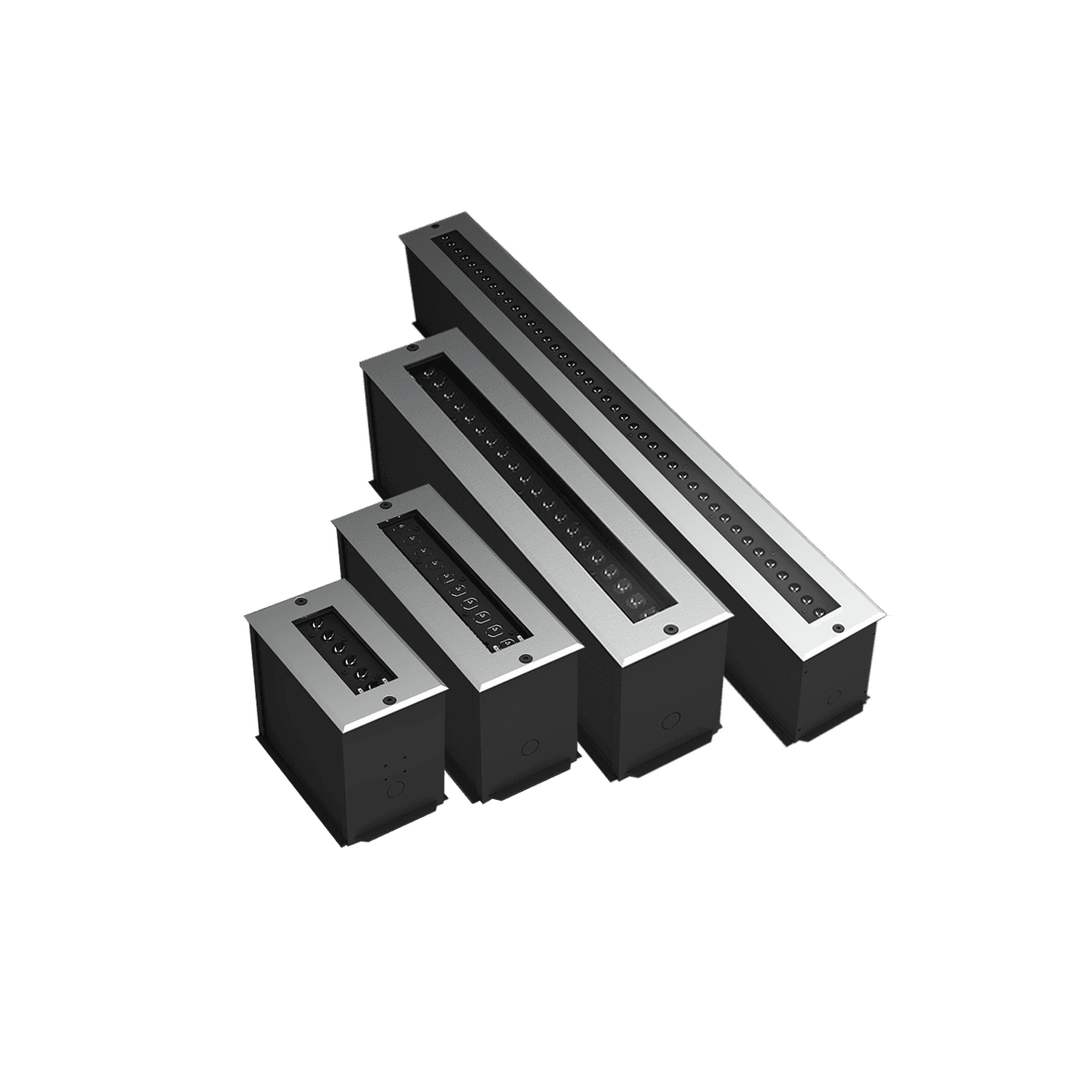

The Azarin 1 light is a versatile and durable outdoor architectural illumination solution. Available in multiple power options and sizes, it boasts an IP67 protection rating, making it resistant to environmental factors and high humidity. Ideal for enhancing architectural features such as bridges, facades, landscapes, monuments, parks, and plazas.

Product details

Models, gallery, dimensions, and other media for “Azarin-1”

Downloads

Downloadable files for “Azarin-1”

Technical specifications

Configuration table with filterable technical data.

200mm

Length(Millimetre)

Power(watt)	Color Temperature(kelvin)	Light Color	Nominal Input Voltage(volt)	Light Distribution Angle(degree)	Warranty(year)	Frame Material	View model
4W	—	Red	230V	15°	3year	Stainless Steel Frame	View model
4W	—	Amber	230V	15°	3year	Stainless Steel Frame	View model
4W	—	Red	230V	25°	3year	Stainless Steel Frame	View model
4W	—	Amber	230V	25°	3year	Stainless Steel Frame	View model
4W	—	Red	230V	50°	3year	Stainless Steel Frame	View model
4W	—	Amber	230V	50°	3year	Stainless Steel Frame	View model

300mm

Length(Millimetre)

Power(watt)	Color Temperature(kelvin)	Light Color	Nominal Input Voltage(volt)	Light Distribution Angle(degree)	Warranty(year)	Frame Material	View model
12W	—	RGB	12V	15°	3year	Stainless Steel Frame	View model
12W	—	RGB	12V	25°	3year	Stainless Steel Frame	View model
12W	—	RGB	12V	50°	3year	Stainless Steel Frame	View model
12W	—	RGB	12V	15 × 15 × 5°	3year	Stainless Steel Frame	View model
12W	—	RGB	12V	50 × 15 × 3°	3year	Stainless Steel Frame	View model
12W	—	Violet	12V	15°	3year	Stainless Steel Frame	View model

500mm

Length(Millimetre)

Power(watt)	Color Temperature(kelvin)	Light Color	Nominal Input Voltage(volt)	Light Distribution Angle(degree)	Warranty(year)	Frame Material	View model
25W	—	RGB	24V	15°	3year	Stainless Steel Frame	View model
25W	—	RGB	24V	25°	3year	Stainless Steel Frame	View model
25W	—	RGB	24V	50°	3year	Stainless Steel Frame	View model
25W	—	RGB	24V	15 × 15 × 5°	3year	Stainless Steel Frame	View model
25W	—	RGB	24V	50 × 15 × 3°	3year	Stainless Steel Frame	View model
25W	—	Violet	24V	15°	3year	Stainless Steel Frame	View model

1000mm

Length(Millimetre)

Power(watt)	Color Temperature(kelvin)	Light Color	Nominal Input Voltage(volt)	Light Distribution Angle(degree)	Warranty(year)	Frame Material	View model
50W	—	RGB	24V	15°	3year	Stainless Steel Frame	View model
50W	—	RGB	24V	25°	3year	Stainless Steel Frame	View model
50W	—	RGB	24V	50°	3year	Stainless Steel Frame	View model
50W	—	RGB	24V	15 × 15 × 5°	3year	Stainless Steel Frame	View model
50W	—	RGB	24V	50 × 15 × 3°	3year	Stainless Steel Frame	View model
50W	—	Violet	24V	15°	3year	Stainless Steel Frame	View model

Light distribution (LDT)

Polar curves and 3D photometric solid for “Azarin-1”
